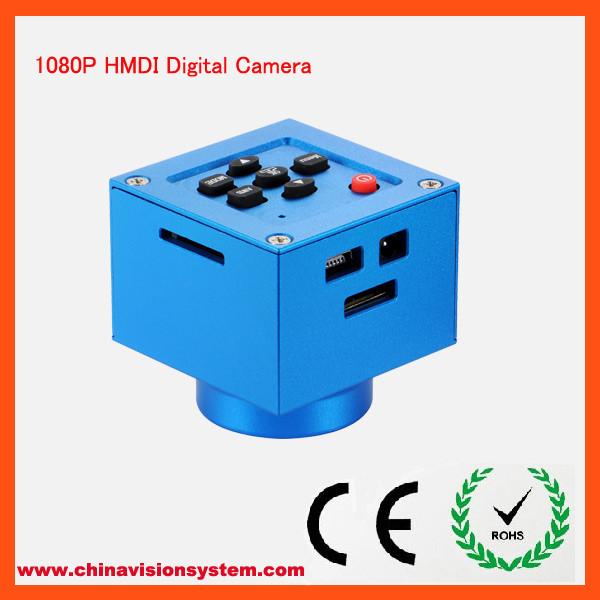

HDMI+USB+TF card 1080P Machine Vision Camera
Molde Numebr:KLN-HI1080P
Features:
Multi output Microscope Camera:HDMI+USB+TF card 1080P
1. 1/2.5'' (4:3) CMOS, 5megapixels High Dynamic Sensor
2. Exclusive Core Image Processing Technology, High-fidelity Color
Restoration
3. The Minimum Size in the Industry
4. Photo/Video/Replay Modes Shift
5. Direct Output to HDMI Screen, No Need the PC
6. Two Video Output Formats: 1080P/20fps High Definition
Format(1920x1080); 720P/30fps High Definition Format(1280x720)
7. Real-time Digital Zooming Function on Preview
8. Support External TF Card, Maximum Capacity of 32GB
9. Grid Function:Single Crossing Line and Double Movable Crossing
Line Switch
10. Compact Menu Keys, Easy Operation
11. One-Press AWB Button
12. Optional USB2.0 Output to PC
Specification:
Image Sensor | CMOS, Color, Progressive Scan |
Chip Size | 1/2.5-inch (4:3) |
Imaging Range | 5.70mm(H) x 4.28mm(V) |
Active Pixel | 2592H x 1944V |
Pixel Size | 2.2μm x 2.2μm |
Shutter Type | Global Reset Release (GRR), Snapshot Only, Electronic Rolling
Shutter (ERS) |
Color Filter Array | RGB Bayer Pattern |
Numerical Depth | 12-bit |
SNRMAX | 38.1dB |
Pixel Dynamic Range | 70.1 dB |
Operating Temperature | –30°C - +50°C |
Photo Resolution | 2592x1944/1920x1080/1280x720, Selectable Resolutions for Capturing
Images |
Video Resolution | 720P/30fps |
Exposure Setting | Automatic/Manual |
White Balance Setting | Automatic/Manual/Preset:3modes for the Color Temperature of Light
Scource, One-Press Button Control AWB |
Data Interface | HDMI/USB2.0 |
Control Interface | Plastic Button Control |
Lens Mount | Adjustable C-mount standard |
Operating Systems | Windows XP/Vista/Win 7(32 and 64-bit ) under USB2.0 Mode |
Measuring Software | VMS3.5 |
Power Supply | 5V DC/2A |
More Information, please contact us kalinu-technology.com
