    HDR Anti-reflective 1.3MP VGA Microscope Camera Inspection Camera

    HDR Anti-reflective 1.3MP VGA Microscope Camera Inspection Camera

    Model Number:KLN-VS103H

    Kalinu Lastest VGA Camera (Model KLN-VS103H) is a high tech Camera with high frame rates, clear image, no shinning,good color reproduction, measurement function and mouse easy control. With 115db wide dynamic range, it solve the reflective problem in industrial inspection applications.


    Here is the image of show whole device.

    Specifications:


    Model

    KLN-VS103-H

    SENSOR

    1/3inch CMOS Color

    Effective pixels

    1280H*720V

    Pixel size

    4.2um*4.2um

    Support the display resolution

    1280*720,1024*768, ,800*600,640*480

    Frame rate

    30FPS

    Signal to noise ratio

    39dB

    Dynamic range

    115dB

    Scan mode

    Progressive scan ( electronic rolling shutter )

    Exposure control

    Automatic / manual

    White balance

    Manual white balance / automatic white balance

    Color mode

    Color, black and white, sepia, negative

    Mirror function

    Upper and lower support, a left-right mirror

    Freeze function

    Support full-screen freezing, freezing playback, support for static image and dynamic image 1/2 screen contrast

    Programmable control

    Image photographing, exposure time, GAMMA, contrast, sharpness, color saturation, R/B gain, elimination of screen flicker, date of photograph

    OSD

    English/Chinese

    Parameter save function

    Exit the menu automatically save

    Measurement function

    1 linear measurement ( 10 group)

    2 circumference, area measurement ( 5 group)

    3 rectangular area measurements ( 5 group)

    4 angle measurement ( 5 group)

    5 oval circumference, area measurement ( 5 group)

    In 6 a group of screen lines ( of arbitrary location and setting scale)

    Storage function

    1 support the market the brand 256M-32GB U disk,

    2. The number is not limited

    3 can set the file name and stores the date

    4 support for the preservation of marking line, measuring, marking graph

    Storage time

    2-4 second (depending on the resolution size vary )

    Mark line

    5 groups ( ten ) cross line, arbitrary location and the set of 6 color

    Image labeling function

    Support for 10 mark

    Data interface

    VGA

    Mouse interface

    The standard PS2 interface, the mouse cursor refreshed 60 times per second

    Digital soft keyboard

    Support

    Working temperature

    0-40 C

    Power waste

    2.5W

    Mount

    C/CS mount

    Size

    52*52*52mm

    LED working instruction

    Red LED instruction

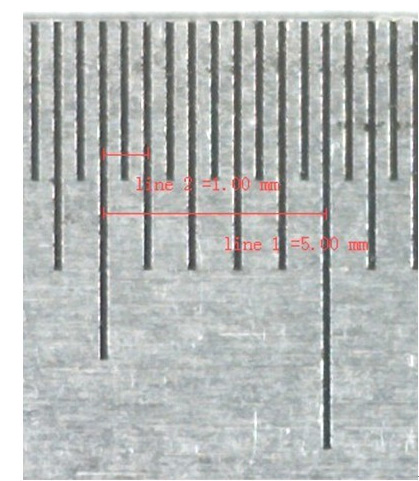

    Measurement Functions:

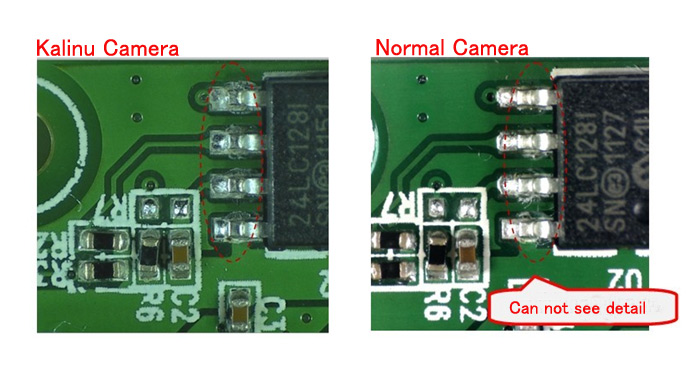

    Image compare(specially the Anti- reflective functions)
