1X-500X 25cm Working Distance USB Digital Microscope
Model NO.: KLN-J501
Description:
1. Zoom Magnification: 1X to 500X Continuous ZOOM
2. Extremely detailed images
3. Dynamic 2.0 megapixel image sensor
4. Working Distance:0CM-25CM
5. Take high resolution pictures at 1600*1200
6. Record what your microscope is examining
7. Excellent wholesale price for resale market
Highlights:
- 2megapixels resolution to Image very clearly, Zoom Max 1x-500X
- 25CM Working Distance
- English Powerful measurement function software.
- Professional Stand Holder
- Support All windows systems including Win7 32 and 64 bit
Specification:
Imaging Sensor | 2.0 Megapixel color CMOS |
Magnification: | 1X to 500X Continuous Zoom |
Working Distance | 0-25CM Long Working Distance |
Still Image Resolution | 320*240,640*480,800*600,1024*768,1200*1024,1600*1200 |
Video Definition | 320*240,640*480,800*600,1024*768,1200*1024,1600*1200 |
Frame rate | 30 frames per second |
Led Light Source | Manual Control 8 LEDS |
Software | English Measurement software for All windows systems |
White Balance | Auto |
EV compensation | Auto |
PC Interface | USB 2.0 |
Power Source | USB port of computer, 5V |
USB Cable Length | 1.5M |
Dimensions | 98mm x 30mm (Length x Radius) |
Gross Weight | 0.6KG |
Packing Cartons | 20pcs/carton, G.W. 13kg |

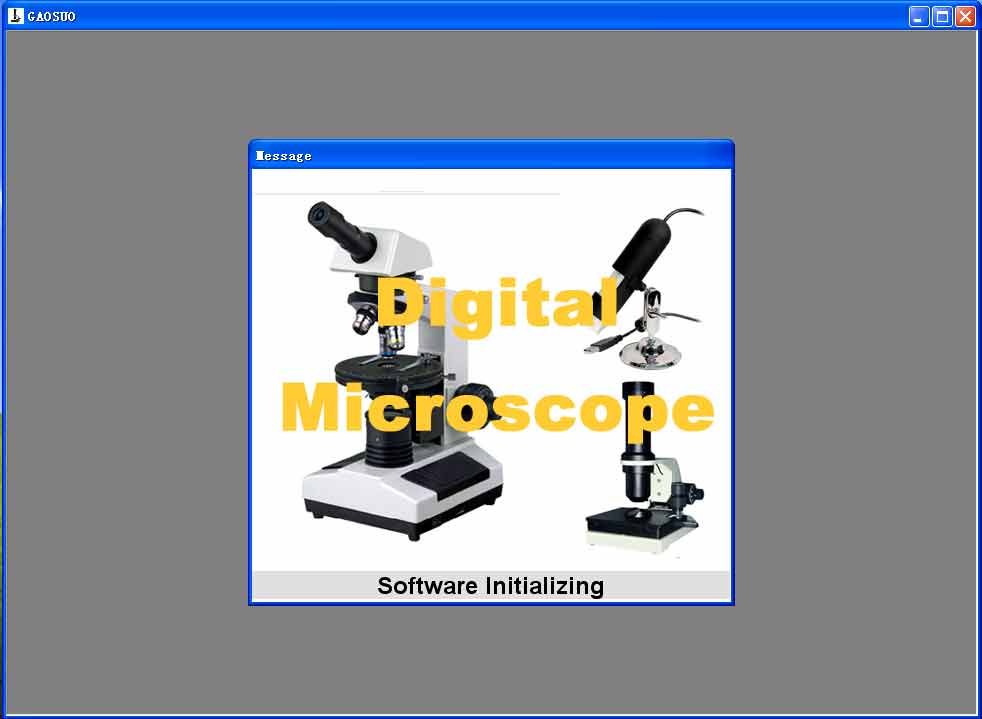

Software Measurement:
Application:
1. Textile industrial
2. Print Industrial
3. Industrial inspection: PCB,
4. Education purpose
5. Hair inspection
6. Skin inspection
7. Biological inspection
8. Jewelry & Stamp (Collections) inspection
Image by our digital microscope:
Textile Inspection and measurement:
PCB Inspection and measurement:
Skin Inspection:
Coin Inspection and measurement:
Package Information:
Unit Box: Gross Weight 320g and size is 20*13*9cm, Volume Weight is
0.6kg. 20 boxes/carton
Each Carton: Weight 7.2kg and size is 49*33*35 cm, Volume Weight is
12kg.
Accessories:
USB Digital Microscope

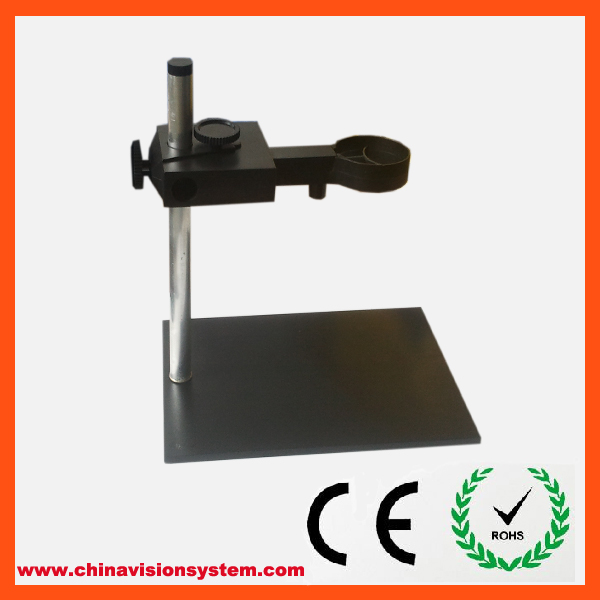

Microscope Stand with holder
Software CD
Notes:
This digital microscope is very easy to use. Even children can have
fun using it! Simply install the included software CD on your
computer then plug the microscope into any USB port. Place the
microscope in its holding stand and place an object of your desire
underneath it. The closer you place it the closer your image will
appear. Open the software program to view a real-time image of your
object and use the rotating dial on the microscope to adjust the
focus of your image.
