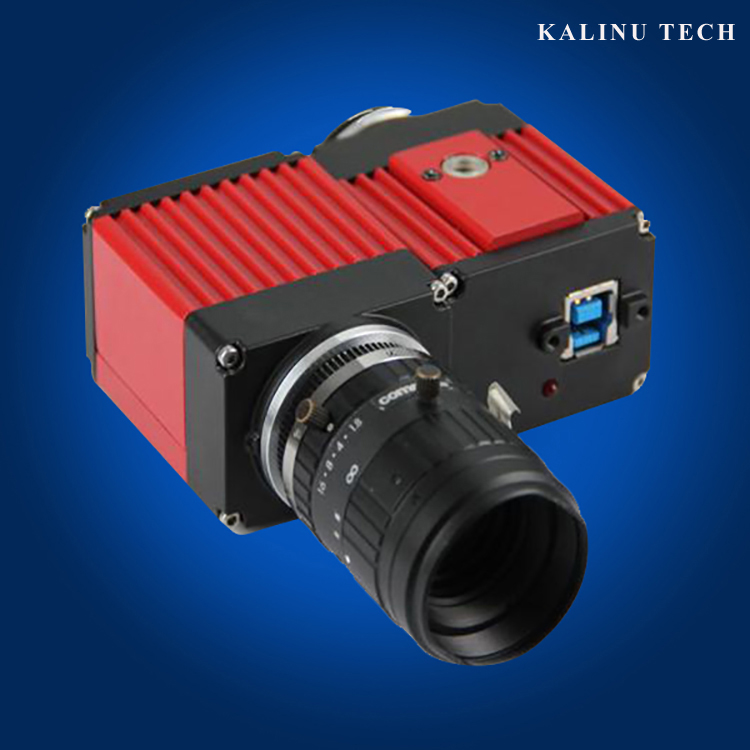

High Speed 14Megapixles USB3.0 Microscope Camera
Model No.: KLN-UN1401
Introduction:
Our USB3.0 digital camera is specifically applied to high-speed
image acquisition applications USB3.0 output is with speed up to
400MB/s. Camera use high-speed image sensor and housing size is
only 59.7 x45x35mm. This Camera is with stable and reliable
transmission characteristics, high-resolution, high-definition, low
noise, excellent color reproduction, image processing functions is
built-in the camera, which can reduce the CPU load effectively.
Our USB cameras support TWAIN and DirectShow software interface and
compatible with Windows XP, Win7 (32/64 bit) operating system. We
also supply SDK for development.
This Camera is suitable for industrial inspection, microscopy
imaging, high-speed image acquisition, medical, research, teaching,
public security and other fields.
Product Features:
USB3.0 interface with 64MB, fast image transmission and stability
Camera built-in image processing, it can save CPU resources in
high-speed video.
Very convenient to use by our software measurement, second
development
Support TWAIN and DirectShow interface
Come free with MicroMS Kalinu measurement software
Support for high-speed low-resolution preview, full-resolution
photos,ROI Function
Compact; shell with USB line fixed column, more reliable connection
Unique RUBBER dustproof structure
Specification:
Model Number | KLN-UN1401-H |
Sensor Size | 1/2.3" CMOS Color |
Effective Resolution | 4384Hx3288V (14MP) |
Preview and Frame rate | 4384Hx3288 | 12 fps |
2592x1944(ROI): | 32 fps |
2048x1536(BIN) | 28 fps |
1920x1080(ROI): | 71 fps |
1024x768(ROI): | 102 fps |
Any ROI | Up to ROI |
AD Switch | 8/10/12bit |
Pixel Size | 1.4μmx1.4μm |
Image Data Format | Raw8/Raw10/Raw12 |
Sensitivity | 0.724V/Lux-sec(550nm) |
S/N Ratio | 35.5dB |
Dynamic Range | 65.3dB |
Clear | 4300 Lines |
Scanning | Line |
Shutter Type | Rolling Shutter |
Exposure time | 0.02~300ms |
White balance | Manual White Balance / White Balance / Regional White Balance |
Exposure Control | Auto / Manual, Regional exposure |
Control | Image Size, Image Photographing, Exposure time, Gamma, Contrast,
Brightness, RGB Gain, Saturation |
Operate System | Windows XP; Win7 32 and 64 Bits |
Software Interface | TWAIN,DirectShow |
Output | USB3.0 5Gbps |
Working indicator | Led Indicator |
Working Temperature | 0~50℃ |
Lens Mount | C/CS |
Camera Size | 59.7x45x35mm |
Weight | 125g |
Update | Support Remote Update |
Notes:
ROI Function means cut part of the whole resolution as a window,
such function can get faster framerates, but the view of region
will be smaller than whole resolution.
