5MP USB Digital Microscope Camera, Eyepiece Camera

Ask Lasest Price
Brand Name :	Chinavisionsystem or OEM
Model Number :	CBY501-H
Delivery Time :	3DAYS
Payment Terms :	TT or Paypal
Supply Ability :	20000pcs

Add to Cart

Product Details
Company Profile

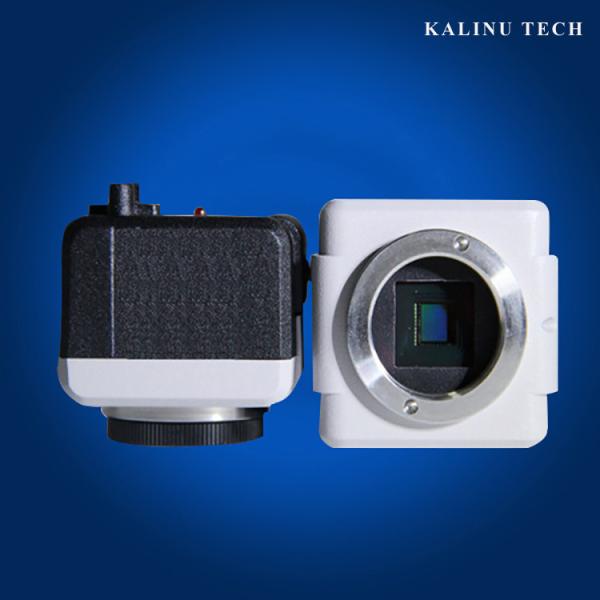

5MP USB Digital Microscope Camera, Eyepiece Camera

Model Number: CBY501-H

Description:

Our cameras are with C mount or CS mount. They can be used in mainly two fields, industrial machine vision image and microscope image. For industrial machine vision, it is always mount a CS lens with the camera. And for microscope image, it can be mounted in C mount of microscope or be mounted a adapter lens to put into the tube of eyepiece or trinocular. We also have a digital camera for telescope, slit lamp, hardness tester etc.

Camera Specification:

Model No	CBY501-H
SENSOR	MT9P006
SENSOR Size	1/2.5inch CMOS Color
Resolution	2592*1944(5M)
Frame Rates	2592*1944:5.3FPS
	2048*1536(ROI):8FPS
	1920*1080(ROI):11.5 FPS
	1280*960(SUM):13 FPS
	1280*960(BIN):13FPS
	640*480(SUM):20 FPS
	640*480(BIN):20 FPS
	Any Size ROI
Pixel Size	2.2um*2.2um
Scanning	Line Scanning
Shutter	ROLLING SHUTTER
Exposure Time	0.120-3000ms
Bits	Raw8/Raw10/Raw12(optional)
Sensitivity	1.76V/Lux-sec(550nm)
Spectral Response	380nm-650nm(with IR-filter)
S/N Ratio	38.5dB
Dynamic Range	67.7dB
Exposure Control	Auto/Manul/Regional
Image Format	RAW,BMP,JPG,PNG
Image Control	Framerate,Image defination,snap mode,image lightness,exposure time,RGB,GAMMA,Contrast, sharpness
PC System	Windows XP(32Bit); Win7(32/64bit) ; Win8(32/64bit)
Software Interface	TWAIN,DirectShow
Output	USB2.0 480Mb/s
Working Instruction	LED
Power	Less 0.8W
Power Supply	USB 5V
Operating Temperature	0-50C
Storage Temperature	-20-60C
Operating Humidity	10%-90%RH
Storage Humidity	10%-60%RH
Camera Mount	C/CS
Camera Size	454836.4mm
Gross Weight	100g

Image Examples:

Packing List:

Microscope Camera

USB Cable

Driver and Software CD

More information about microscope camera image system and macro image system, please visit:

http://www.kalinu-technology.com

http://www.chinavisionsystem.com
