10MP Machine Vision Camera with Cache

Ask Lasest Price
Brand Name :	Chinavisionsystem or OEM
Model Number :	KLN-CFM1000-H
Delivery Time :	3DAYS
Payment Terms :	TT or Paypal
Supply Ability :	20000pcs

Add to Cart

Product Details
Company Profile

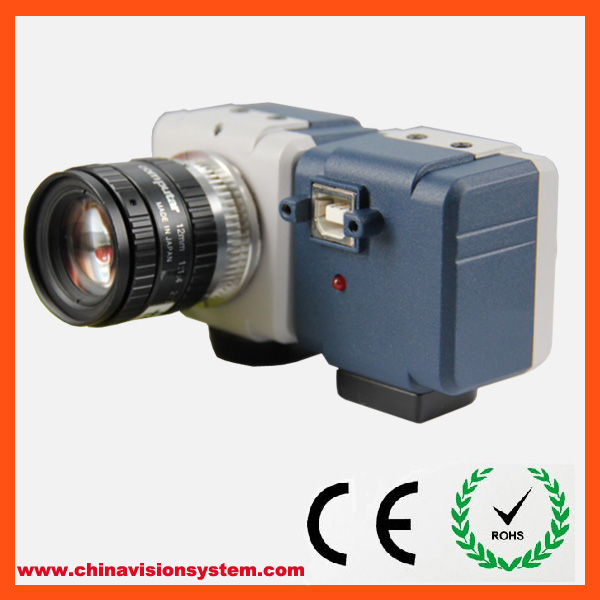

10MP Machine Vision Camera with Cache

10MP Machine Vision Camera with Cache
Model Number:KLN-CFM1000-H

CFM series Camera from Kalinu Technology is with cache built in the camera. With the cache, the camera can work more fast and stable. They are mostly used in machine vision field, Industrial inspection, as well as microscope image solution.
Techinical Specification:

Items	Specification
Model Number	KLN-CFM1000-H
Sensor Size	1/2.3inch CMOS Color
Effective Pixels	*36642748(10M)**
Preview Frame-rates	*36642748: 4FPS 18321374(BIN): 16FPS* *19201080(ROI): 19.3FPS 1280720(BIN): 41.3FPS* *916688(BIN): 43.3FPS Any Size ROI**
Pixel Size	*1.67um1.67um**
A/D switch	8/10/12 bits
Sensitivity	0.31V/Lux-sec(550nm)
S/N Ratio	34dB
Dynamic Range	65.2dB
Resolution	1500Lines
Scanning Mode	Line
Shutter Type	ROLLING SHUTTER
Exposure Time	0.036-300ms
Exposure Control	Auto/Manual, Region Exposure
White Balance	Auto/Manual, Region White Balance
Camera Update	Support Remote Update
Functions	Image Definition, Snap mode,Exposure time, Gain,Gamma, Contrast, RGB, Sharpness, Lower Noise
Operate System	Windows XP/Windows Vista/Windows 7
Software	English Measurement Software
Software Interface	TWAIN, Directshow
Output	USB2.0 480Mb/s
Working Instruction	LED Light
Working Power	Less than 1.5W
Working Temperature	0-50 Degree
Camera Mount	C/CS Mount
PCB Size	*3939mm£¨Dual£©**
Camera Size	*454836.4mm*
Weight	105g
